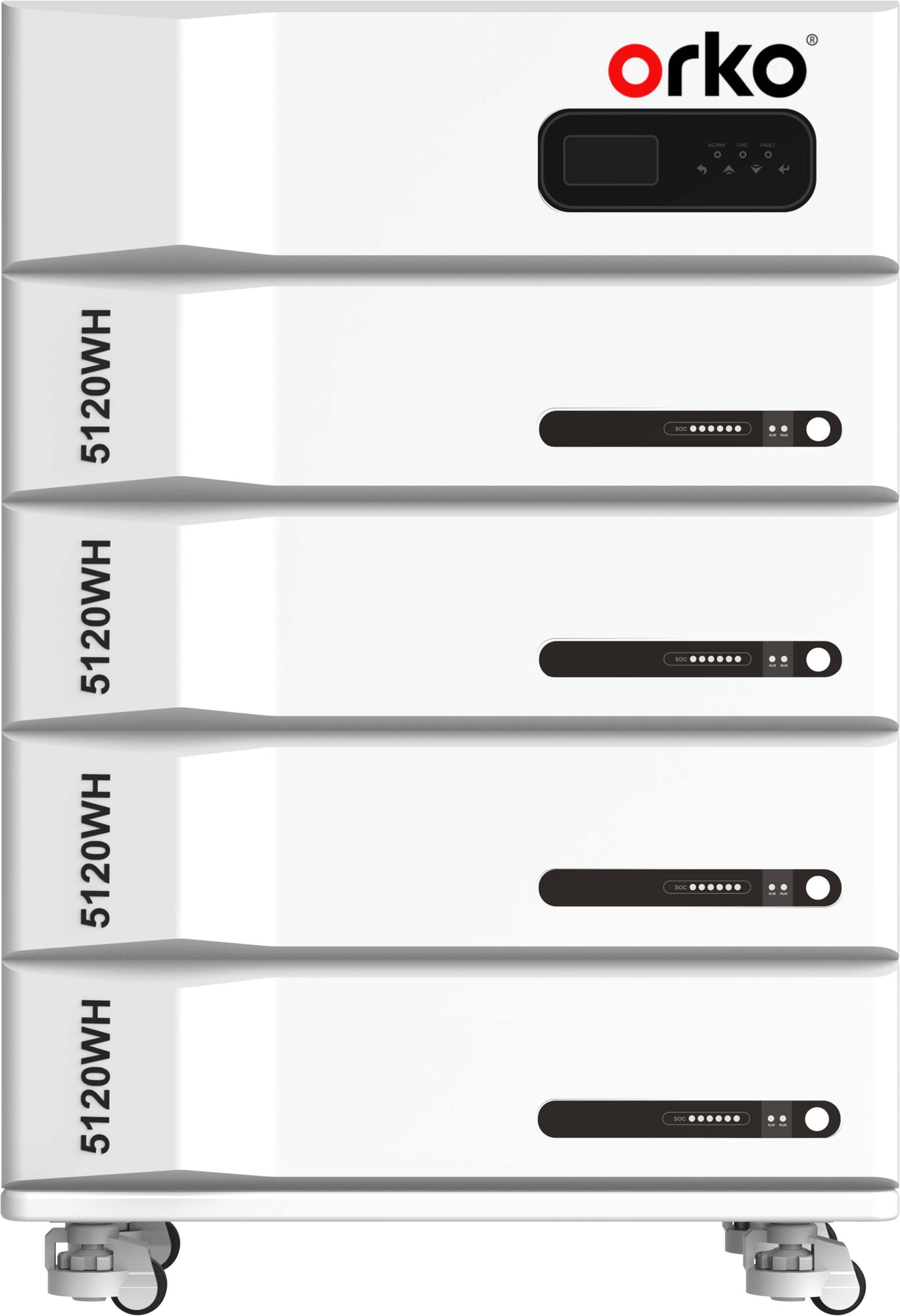

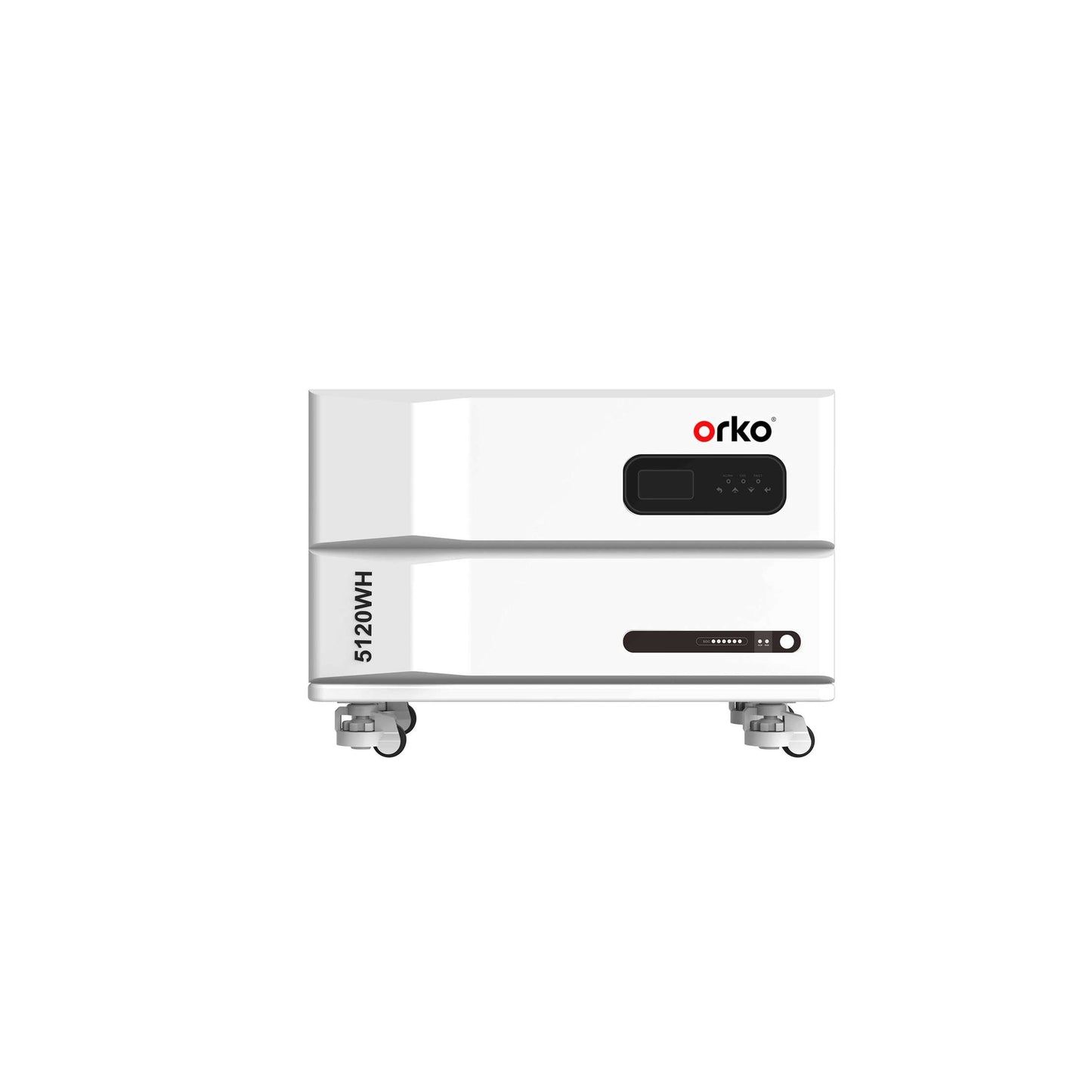

ORKO Apollo A Series 5kWh Stackable Energy Storage System | 5.5KW/5KW Inverter, EU & US Standards
ORKO Apollo A Series 5kWh Stackable Energy Storage System | 5.5KW/5KW Inverter, EU & US Standards
| NO. |
A Series: EU Standard Inverter (5.5KW Inverter AC220V) |
A Series: US Standard Inverter (5kW Inverter AC 110V) |
| Product Category |
|
ORKO Apollo A Series(US Standard Stackable Model) |
| Power | 5.5KW | 5KW |
| Battery Input Voltage | 51.2V | 51.2V |
| Inverter Output Voltage | 230V | 110V/230V |
| Maximum PV Input Power | 5500W | 6400W |
| PV Input Voltage Range | 120V–500V | 60V-150V |
| Maximum MPPT Charging Current |
|
100A |
|
Enclosure Dimensions |
60×40.5×18 cm |
60*40.5*18CM |
| Battery Specifications: |
|
|
|
Voltage |
51.2V |
51.2V |
| Capacity |
5120Wh (100Ah) |
5120Wh(100Ah) |
| Discharge Current |
100A |
100A |
| Battery Type |
LiFePO4 |
LiFePO4 |
|
Enclosure Dimensions |
(60*40.5*19.5CM)*1 |
(60*40.5*19.5CM)*1 |
| Base Accessories |
1 Base Plate; 4 Fuma Wheels; 2 AC Aviation Plugs; 2 MC4 Connectorss |
Base Plate Accessories: 1 Base Plate; 4 Fuma Wheels |
The Apollo A Series includes three configurations:

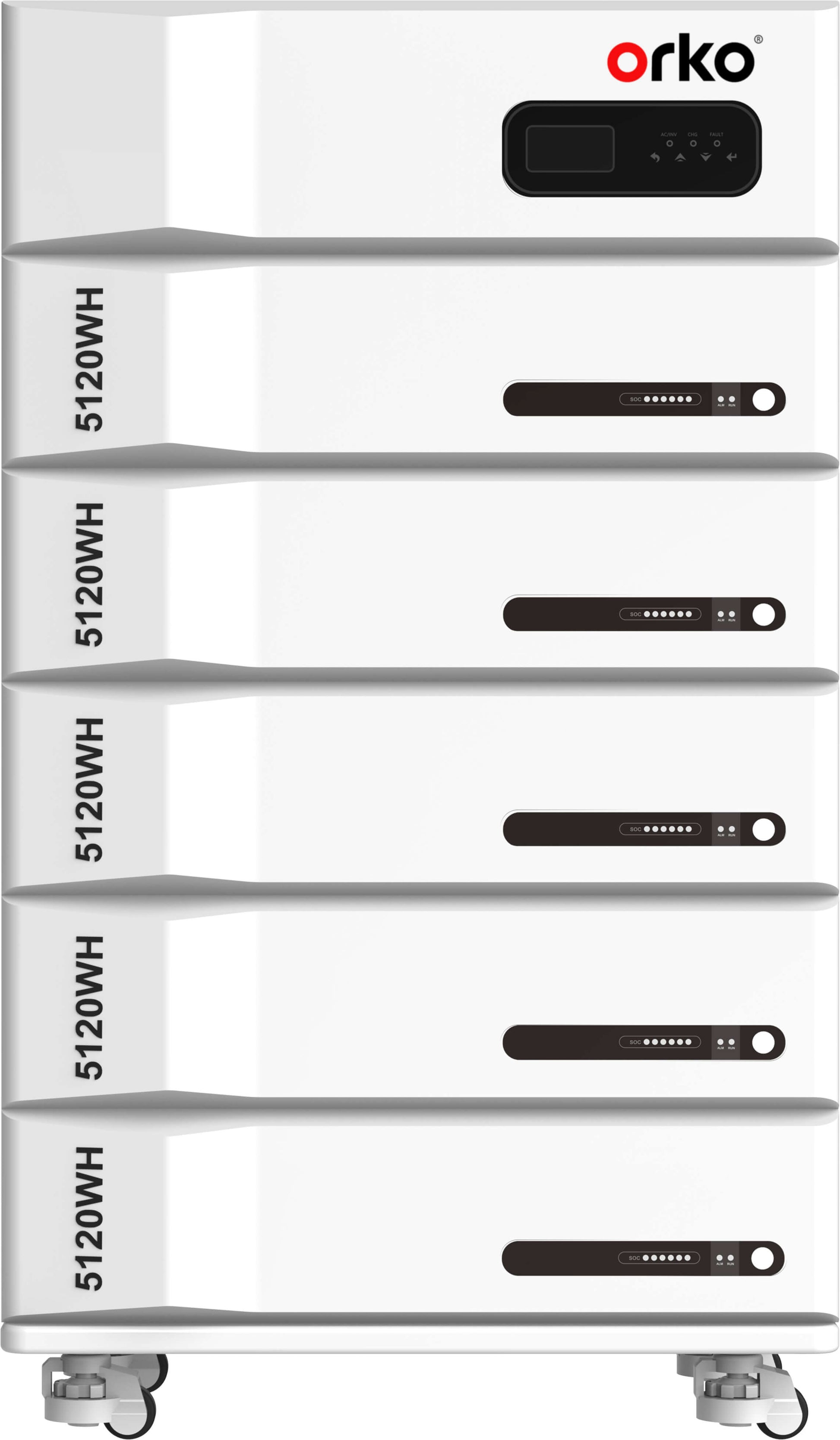

EU Stacked Single Inverter: Single 5.5kW inverter, stackable 5kWh batteries (expandable by demand).
EU Parallel Dual Inverter: Dual 5.5kW inverters (11kW total), doubled MPPT and PV capacity.
US Stacked Single Inverter: Lower inverter power, same modular 5kWh battery design, simplified base accessories (no AC aviation or MC4 plugs).
Discover the ORKO A Series 5kWh Stackable Energy Storage System — available in both EU (220V) and US (110V) standards. Equipped with a 5.5KW or 5KW inverter, modular LiFePO₄ batteries, and durable rolling base design, it’s perfect for home, RV, and small commercial solar setups.
🟢 Key Features
Dual Standards Available — Supports both EU 220V (5.5KW) and US 110V (5KW) inverter versions to meet different regional requirements.
Stackable Modular Design — Expandable battery system; each module offers 5kWh (100Ah) capacity for flexible energy scaling.
High-Efficiency Inverter — MPPT solar charging up to 5500W (EU) or 6400W (US) with up to 100A charging current for reliable power conversion.
Advanced LiFePO₄ Battery — Safe, long cycle life, and high energy density at 51.2V 100Ah per unit.
Compact & Sturdy Build — Integrated with a stable base and optional caster wheels for easy mobility and installation.
Flexible Applications — Ideal for residential backup power, RVs, cabins, and small commercial systems.
🔥 Ready to power your home, business, or project? Contact us today for the best energy solution!
Email: ds_battery@hotmail.com
dds860682@gmail.com
Telephone/WhatsApp:+86 18022963315
